Upgrading to the Advanced Dual-Spool Retraction Mechanism

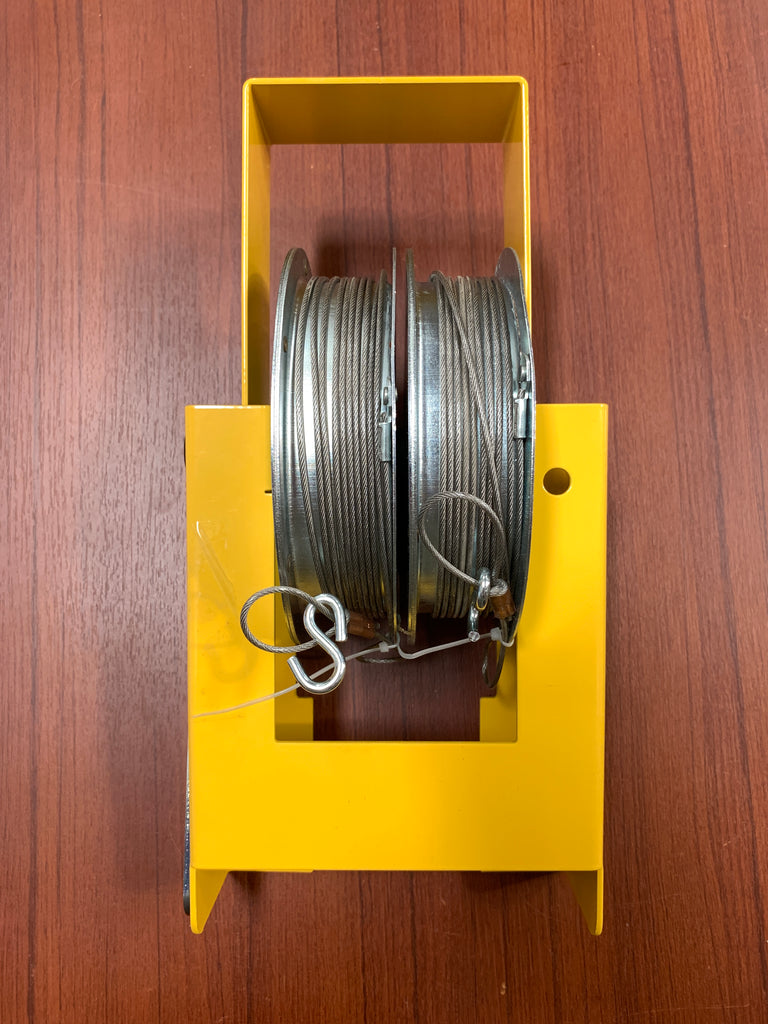

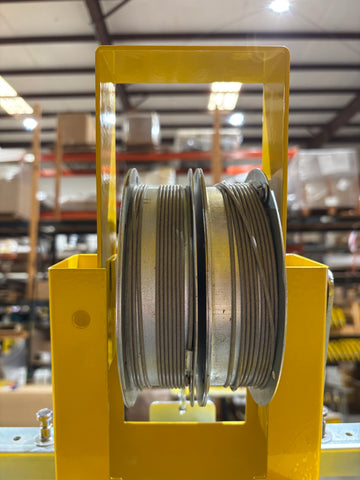

The previously utilized 2000 and 3000 series panel saws necessitated the implementation of an auxiliary diminutive spool. Regrettably, the manufacturing of these supplementary components has been terminated. In light of this discontinuation, the cutting-edge replacement solution has been devised to enhance the entire Retraction Mechanism. This innovative upgrade encompasses a pair of standard-sized spools and an accompanying wrench to facilitate the adjustment of tension.
Installation Process for the Advanced Dual-Spool Retraction Mechanism
To successfully incorporate this advanced dual-spool retraction mechanism into your panel saw, the extant older configuration that features one standard-sized spool and one small spool must be supplanted. This process entails meticulous adherence to the following stepwise procedure.
Attaching the First Hook to the Carriage
Initiate the installation by meticulously fastening the first hook to the carriage. It is of paramount importance to ensure that this connection is both secure and stable, as it will play an integral role in the overall functionality of the retraction mechanism.
Connecting the Second Hook to the First Hook
Subsequently, proceed to carefully affix the second hook to the first hook. This pivotal step is essential in establishing a robust and efficient linkage between the two spools, thereby contributing to the optimal performance of the advanced retraction mechanism.
Applying Tension to the Dual-Spool Retraction Mechanism

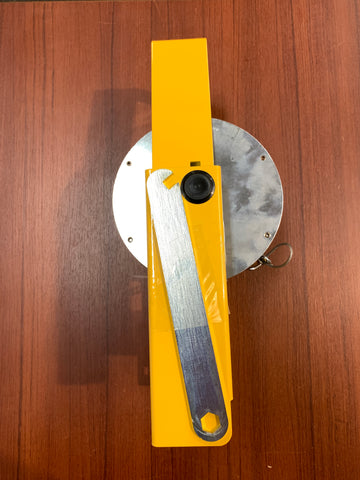

Finally, with both hooks securely connected, the tensioning process can commence. Utilize the provided wrench to meticulously adjust the tension within the retraction mechanism, ensuring that it operates with the utmost precision and efficacy.
By adhering to these instructions, the installation of the advanced dual-spool retraction mechanism will enhance the functionality and efficiency of your 2000 or 3000 series panel saw. This innovative solution offers a notable improvement over the older style and is designed to ensure the longevity and superior performance of your panel saw.
