Job Site Shuttle Dolly (Manual)
Move heavy materials across challenging job-site terrain with the Job Site Shuttle Dolly (Manual). Designed for demanding construction and delivery environments, this all-terrain dolly combines a rugged steel frame, adjustable post system, and large tires to help transport bulky materials where conventional carts may struggle. With a 1,500 lb load capacity, it can carry materials such as drywall, plywood, doors, windows, cement bags, roofing tiles, lumber, blocks, and piping. Its wide tractor tires and locking, flat-free swivel tires provide a versatile solution for moving heavy loads across uneven surfaces.
1,500 lb Load Capacity
Transport substantial loads of building materials, doors, windows, and other bulky items with a dolly designed for demanding material-handling applications.
All-Terrain Mobility

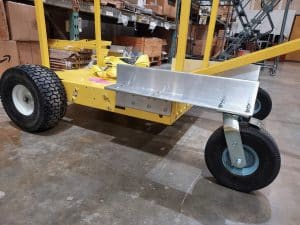

Large 15" × 6" non-flat tractor tires help the dolly navigate rougher surfaces, while the 10-inch locking, flat-free tires support maneuverability and positioning.
Adjustable Post System
Ten vertical post positions spaced 3.875 inches apart allow you to configure the support arrangement for different load sizes and material-handling needs.
Secure E-Track Fittings
Six 86-inch powder-coated steel posts feature laser-cut E-track fittings to accommodate compatible E-track straps for securing materials during transport.
Heavy-Duty Steel Construction
The powder-coated, 12-gauge steel unibody is built for demanding work environments. A durable 3/4-inch steel axle and bushing-equipped wheel assemblies support reliable operation.
Flexible Handle Options
The steel post handles can be used at either end of the dolly. An additional handle set is available for applications where two operators are needed to manage heavy loads.
Built for the Toughest Job-Site Moves
Move more material with a 1,500 lb capacity, adjustable support posts, and rugged wheels engineered for challenging terrain. From construction deliveries to moving large doors and sheet goods, the Job Site Shuttle Dolly helps make heavy-material transport more manageable.
A Versatile Solution for Job-Site Material Handling
- Configure the Post Positions Select from ten vertical post positions to accommodate the size and arrangement of the materials being transported.
- Secure Materials for Transport Use compatible E-track straps with the laser-cut post fittings to help secure suitable loads before moving them.
- Navigate Challenging Surfaces The combination of large tractor tires and locking, flat-free tires is designed to help move heavy materials across rougher job-site terrain.
- Adapt to Different Materials Transport sheet goods, pre-hung doors, patio doors, windows, lumber, roofing materials, cement bags, and piping according to the load's dimensions and configuration.
What Can You Transport?
Doors & Windows

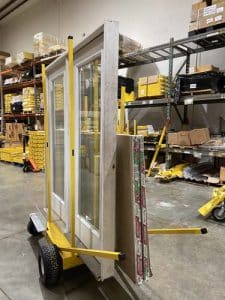

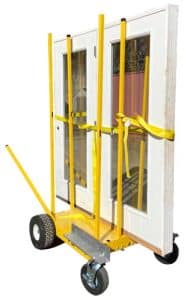

Transport pre-hung doors, patio doors, window assemblies, and other large framed materials. The manufacturer describes the system as capable of carrying two sets of pre-hung and patio doors simultaneously.
Sheet Goods

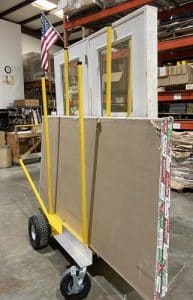

Move drywall, plywood, and other compatible sheet materials using the adjustable post system and suitable load-securing straps.
Construction Materials
Handle materials such as cement bags, roofing tiles, lumber, blocks, and piping for construction and delivery applications.
Product Specifications
| Product | Job Site Shuttle Dolly (Manual) |
|---|---|
| Load Capacity | 1,500 lbs |
| Frame Construction | 12-gauge powder-coated steel unibody |
| Dimensions Without Posts | 50" L × 29" W × 8" H |
| Dimensions With Vertical Posts | 50" L × 29" W × 90" H |
| Vertical Posts | Six 86" steel posts with laser-cut E-track fittings |
| Additional Posts / Handles | Two 72" steel posts with caps; post handles are interchangeable |
| Post Positions | 10 vertical positions, spaced 3.875" apart |
| Front / One-End Tires | Two 10" locking, flat-free swivel tires |
| Opposite-End Tires | Two 15" × 6" non-flat tractor tires |
| Axle | 3/4" steel axle |
| Optional Accessory | Additional handle set for two-operator handling |
Designed for Demanding Work Environments
From construction sites and building-material deliveries to professional door and window installation, the Job Site Shuttle Dolly provides a versatile platform for transporting large, heavy materials. Its adjustable post layout and rugged wheel configuration make it a practical choice for operations that require more than a standard material cart.
Load Safety Tip: Always secure materials appropriately before transport, distribute weight evenly, and confirm that the load is within the dolly's rated capacity. Terrain, slopes, load dimensions, and material stability should be considered before moving a load. The additional handle set is an optional accessory.
